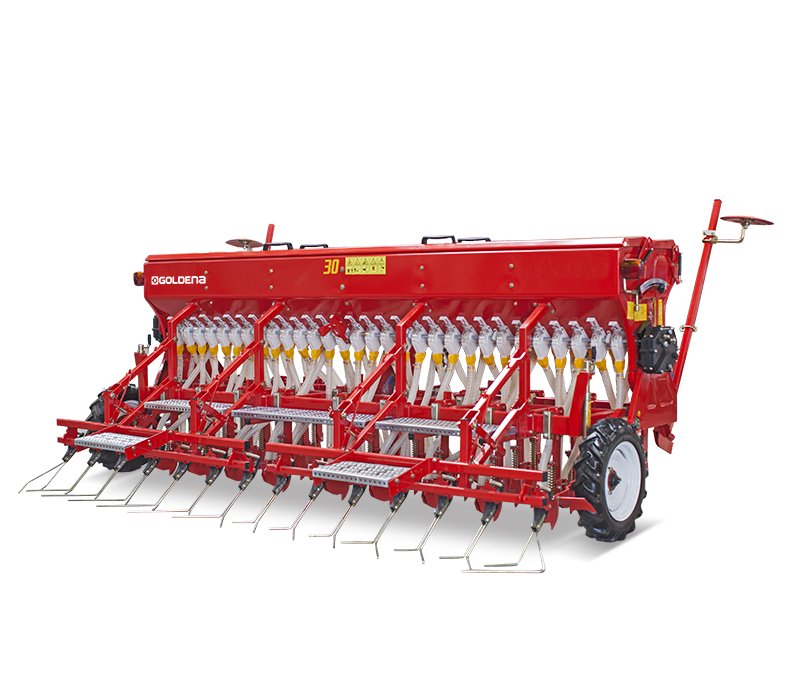

UNIVERSAL AXE FOOT SEED DRILL
The Universal Axe Foot Seed Drill is a machine that seeds all kind of grains and fertilizer in wished depth and volume equally and through lines in necessary quantity.
The machine is mounted to tractor by three linkage point system.
Manufactured as 14-16-18-20-22-24-26-28-30-32 rows (feet). The seed and fertlizer is left on the soil separately by the means of steel ax foot which has spring in the point.
Universal Ax Foot Seed Drills has swallow type pressure rakes for levelling the soil and covering onto seeds with soil.
Machine has the capability of seeding grains such as Maize, Soya, Pea, Chickpea, Lentil, Canola etc. İn the same time can seed the smaller seeds such as Alfa-alfa seed, Onion Seed, Spinach seeds, too.
Seeders can be produced as fertilizer and without-fertilizer units.
The seed and fertilizer to be left on each hectar can be adjusted by the means of transmission sensitively.
By the means of the ax feet with spring in the point; the seed is provided to be left on the soil in the same depth and same quantity and this provides maximum germination.
The machine never picks and collects the stubbles during the seeding process in stubble lands.
The covering rakes on the rear of machine are spring rake and swallow type rakes.
The seed and fertilizer can be filled inside the machine by the help of the step on the rear of machine.
The tires were equipped with soil and mud scrapers for preventing mud and soil collectin on the tires.
For the seeder is hanging type seeder by three point linkage, approaching beside the land is easier and non-seeded part will be less than others.
|
MODEL
|
FEET QNTY.
|
TOTAL LENGTH (CHASSIS)
|
WIDTH
|
HEIGHT
|
SPACE BETWEEN ROWS
|
SEED TANK CAPACITY
|
FERTILIZER TANK CAPACITY
|
TIRES
|
NECESSARY POWER
|
WEIGHT (With Fertilizer Tank)
|
|
|
pcs.
|
mm
|
mm
|
mm
|
mm
|
dm3
|
dm3
|
|
(Min. Hp)
|
kg
|
| GUA -14 | 14 | 2510 | 2450 | 1600 | 125 | 251 | 268 | 6,5/80-15 | 40-50 | 774 |
| GUA -16 | 16 | 2510 | 2700 | 1600 | 125 | 285 | 305 | 6,5/80-15 | 40-50 | 836 |
| GUA -18 | 18 | 2510 | 2950 | 1600 | 125 | 320 | 341 | 6,5/80-15 | 50-60 | 870 |
| GUA -20 | 20 | 2510 | 3200 | 1600 | 125 | 354 | 378 | 6,5/80-15 | 60-70 | 955 |
| GUA -22 | 22 | 2510 | 3450 | 1600 | 125 | 388 | 414 | 6,5/80-15 | 70-80 | 1014 |
| GUA -24 | 24 | 2510 | 3700 | 1600 | 125 | 422 | 451 | 6,5/80-15 | 80-90 | 1090 |
| GUA -26 | 26 | 2580 | 4150 | 1600 | 125 | 456 | 487 | 6,5/80-15/6,00-16 | 100-110 | 1215 |
| GUA -28 | 28 | 2580 | 4400 | 1600 | 125 | 491 | 524 | 6,5/80-15/6,00-16 | 100-110 | 1270 |
| GUA -30 | 30 | 2580 | 4650 | 1600 | 125 | 525 | 560 | 6,5/80-15/6,00-16 | 110-120 | 1385 |
| GUA -32 | 32 | 2580 | 4900 | 1600 | 125 | 559 | 597 | 6,5/80-15/6,00-16 | 110-120 | 1465 |
