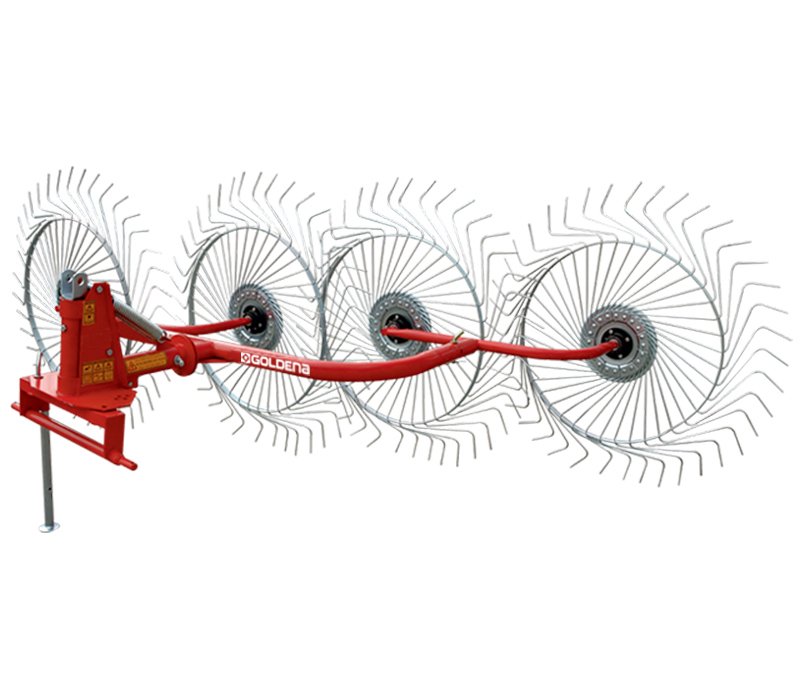

HAY RAKE

Hay Rake is easily mounted to each type of tractor by three point linkage system.

It provides a lot of time and labor saving.

Our machine offers an excellent performance on each kind of fields and it helps farmers to make work easier than previous.

Hay Rake is used for separating the green herb over the field to ventilate and for drying in a short time.

It can be used to collect the cut plant stalks (barley, wheat stalks) together to put this in a standard row. obtained extra gain.

Specifications	Units	GHR4	GHR5	GHR 8	GHR 10
Number of Drums	pcs	4	5	8	10
Total Length	mm	4000	5300	6700	7600
Total Width	mm	2100	2300	3000	4100
Working Width	mm	220-260	330-350	520-610	620-700
Number of Springs	pcs	160	200	320	400
Required Power	hp	30-50	40-60	45-90	45-90
Total Weight	kg	175	215	360	590
