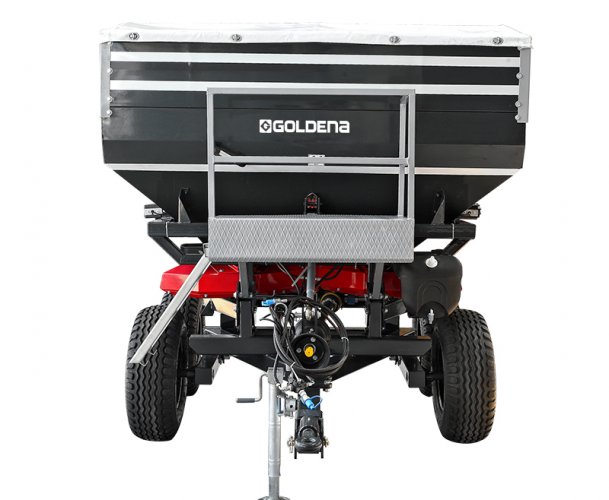

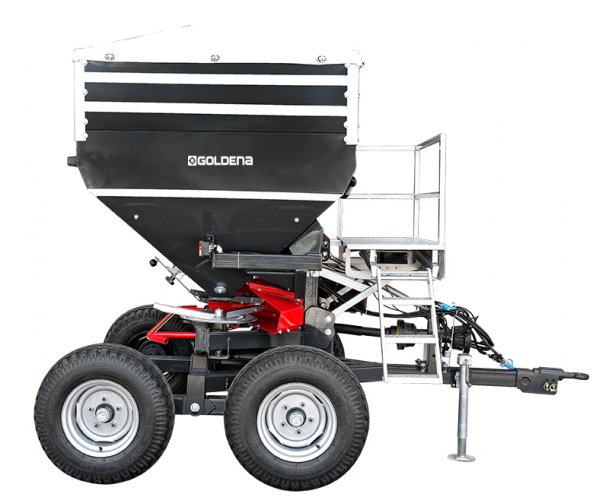

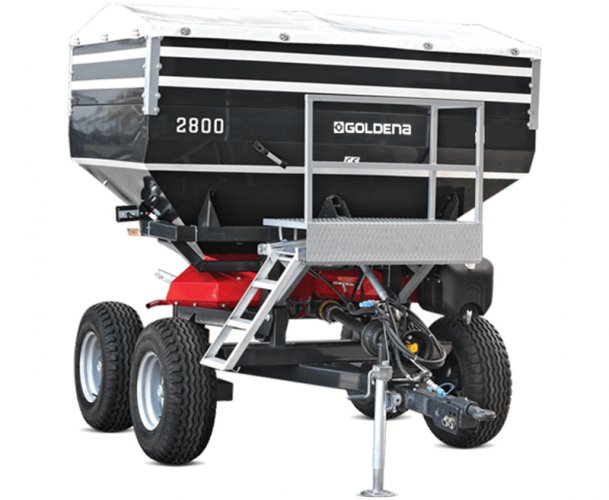

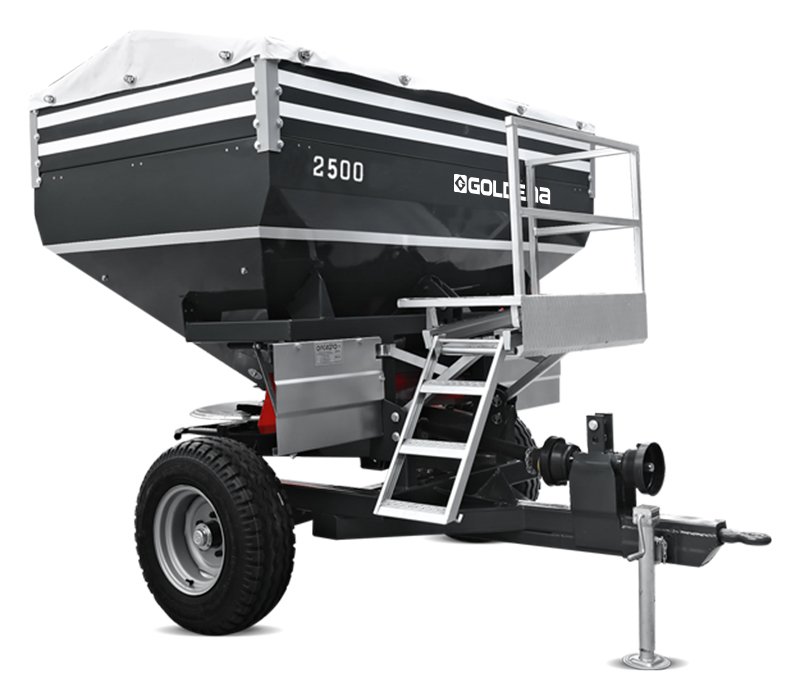

TRAILED FERTILIZER SPREADER
The trailed type fertilizer spreaders are manufactured in 2500lt-2800lt-3000lt and 3500lt. The spreading capacity changes between 10-16-18 and 24mt depends on the fertilizer type and the length of the wings of discs.
The trailed type fertilizer spreaders have two types as single axle(two tires ) and double axle with four tires. They are prefered as suitable to capacity, land condition and distance of the land.
The mixers inside the tank provides mixing and pouring on spreader discs well and helps well spreading. The discs are produced stainless steel.
The fertilizer spreaders are easily transported to the field where fertilizing shall take place, and there is no need to take a second tractor to the small fields for our machines with a high storage capacity.
Trailed Type Fertilizer Spreader machines with double discs are manufactured as trailed type. Spreader machines are driven by PTO shaft and manufactured with hydraulic controller.By this hydraulic control system, in the beginning of the border of land, from the tractor cabin, fertilizing can be controlled in the cabin and fertilizers are easily and quickly spreaded and also unnecessary fertilizer consumption is prevented.
Technical Specifications |
Model
|
||||
GFS- 2000TR | GFS- 2500TR | GFSD- 2500 TR | GFSD- 3000 TR | GFSD- 3500 TR | |
Spreader Disc RPM (rev/min/rpm) | 720 | 720 | 720 | 720 | 720 |
Pallet Number in Spreader Disc | 2 | 2 | 2 | 2 | 2 |
Empty Weight of Machine (kg) | 640 | 680 | 800 | 850 | 900 |
Payload (kg) | 2000 | 2500 | 2500 | 3000 | 3500 |
Height of the Machine (mm) | 2240 | 2280 | 2330 | 2370 | 2390 |
Width of the Machine (mm) | 2350 | 2350 | 2350 | 2350 | 2350 |
Length of the Machine (mm) | 2250 | 2250 | 2440 | 2440 | 2440 |
Working Speed(km/h) | 8-10-12 | 8-10-12 | 8-10-12 | 8-10-12 | 8-10-12 |
Working Width Standart (mt) | 16-24 | 16-24 | 16-24 | 16-24 | 16-24 |
Working Width Optional (mt) | 24-36 | 24-36 | 24-36 | 24-36 | 24-36 |
Disc material | Chrome | Chrome | Chrome | Chrome | Chrome |
Painting | Acrylic or Electrostatical | Acrylic or Electrostatical | Acrylic or Electrostatical | Acrylic or Electrostatical | Acrylic or Electrostatical |
Control System | Hydraulic | Hydraulic | Hydraulic | Hydraulic | Hydraulic |
Axle | Single | Single | Double | Double | Double |
Required Power | 70-80 | 80-90 | 90-100 | 100-110 | 100-110 |
