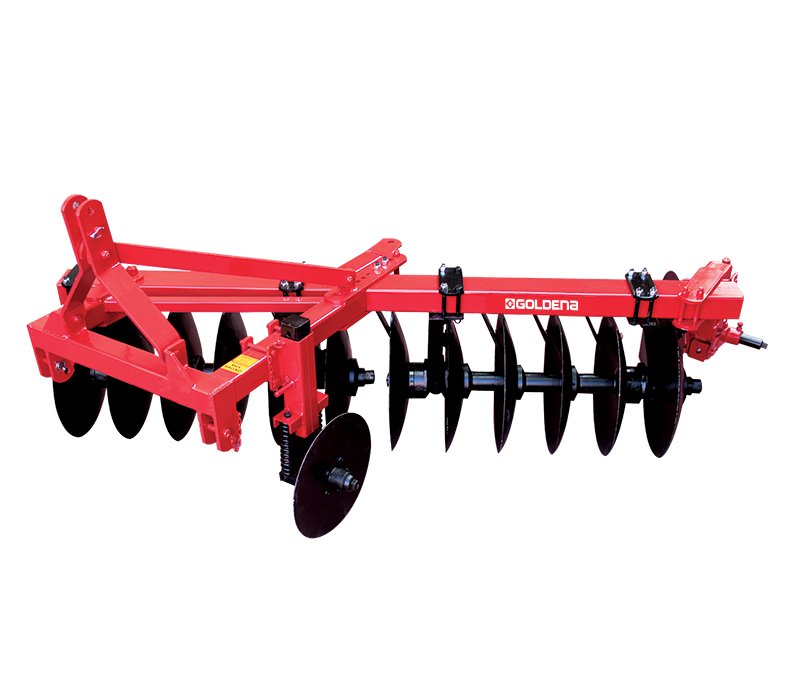

ONE-WAY DISC PLOUGH
One-way disc plow's discs are set on the same axle at the same vertical angle. This arrangement allows the device to plow faster, handle heavy stubble well, break hard sun-baked soil, and destroy weeds.
They are particularly adapted for use in hard, dry soils, shrubby or bushy land, or on rocky land.
It is used for the purpose of soil breaking, soil raising, soil turning and soil mixing.
It is produced as 10-14 discs and the discs diameter is 610mm.
Technical
| Specifications | Measurement | 10 | 11 | 12 | 13 | 14 |
| Disc Number | pcs | 10 | 11 | 12 | 13 | 14 |
| Disc Diameter | mm | 610*5 | 610*6 | 610*7 | 610*8 | 610*9 |
| Disc Between Space | mm | 220 | 220 | 220 | 220 | 220 |
| Working Width | mm | 197 | 219 | 241 | 263 | 285 |
| Weight | kgs | 672 | 700 | 732 | 762 | 792 |
| Necessary Power | hp | 50-55 | 60-65 | 70-75 | 80-85 | 90-100 |
