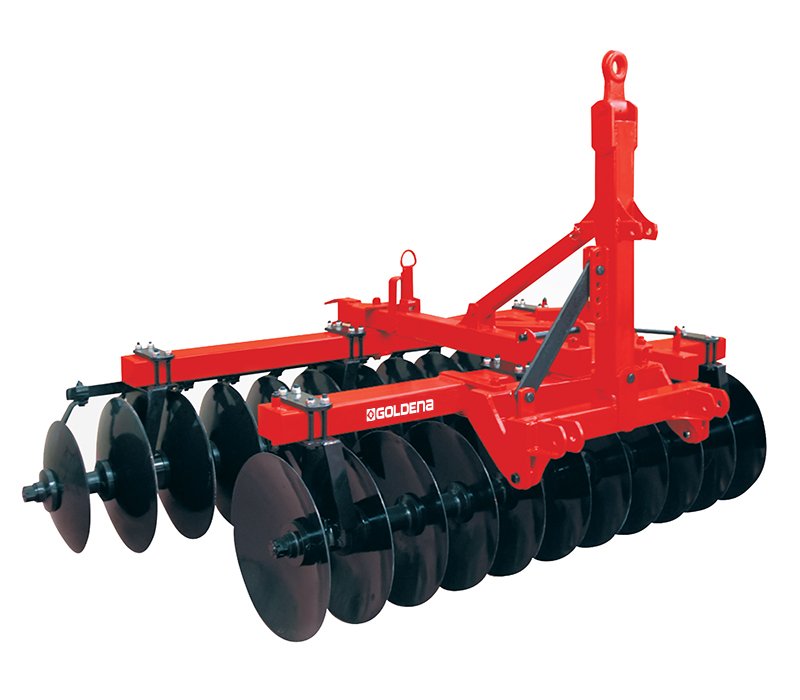

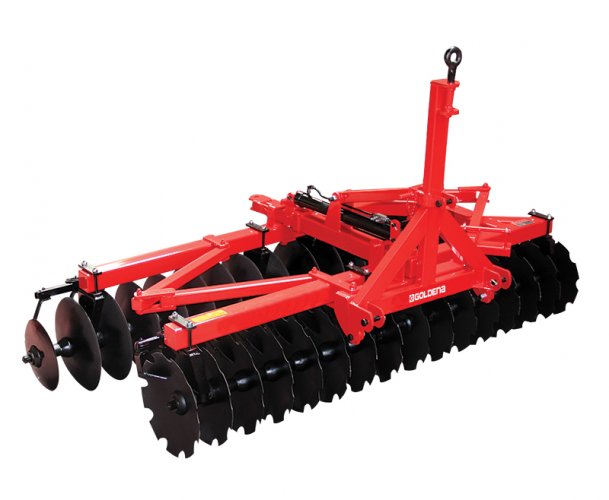

MOUNTED HEAVY DISCHARROW

Heavy Type Offset Disc Harrows are used to till the soil where crops are to be planted. It is also used to chop unwanted weeds or crop remainders.

These discharrows are called as V type Heavy Offset Disc Harrows,too.

Off set disc harrows mounted to tractor with three point linkage sytem (universal) and trailed by drawbar. Machine can be easily transported to the field.

These disc harrows are used for chopping of stems and mixing with soil after harvesting. After using of plough, chisel and cultivators on the field, you can use this disc harrow for breaking of clods and crumbling of soils.

These disc harrows are also used on all kinds of soils for making of seed bed, seedling bed, chopping of weeds, mixing of organic and inorganic fertilizers with soil and aeration as easily.

Offset disc harrows are available between  14-22 discs and mounted to tractor by three point linkage system. The discs are preferable in 460mm and 510mm diameters.

Offset disc harrows are working on four and six bearings as suitable to size of machine and the bearings needs to be greased.

Model	Number of Discs	Disc Diameter (mm)	Distance Between Disks (cm)	Number of Beds	Weight of 46 (kg)	Weight of 51 (kg)	Frame Dimensions (mm)	Battery Shaft Diameter (cm)	Total Length (a) (cm)	Total Width (cm)	Total Height (b) (cm)	Working Width (cm)	Power Requirement
ACD-20	20	460/510	18	8	520	595	80x100x5	26x26	150	201	180	180	50 hp	37 kw
ACD-22	22				560	635				219		198	55 hp	41 kw
ACD-24	24				595	675				237		216	60 hp	45 kw
ACD-26	26				645	710				255		234	65 hp	48 kw
ACD-28	28				655	728				273		252	70 hp	52 kw
ACD-30	30				694	750				291		270	75 hp	56 kw
ACD-32	32				20	792				309		288	80 hp	60 kw
ACD-34	34			12	870	963				327		36	85 hp	63 kw
ACD-36	36				915	996				345		324	90 hp	67 kw
ACD-38	38				940	1026				363		342	95 hp	71 kw
ACD-40	40				975	1066				381		360	100 hp	75 kw
