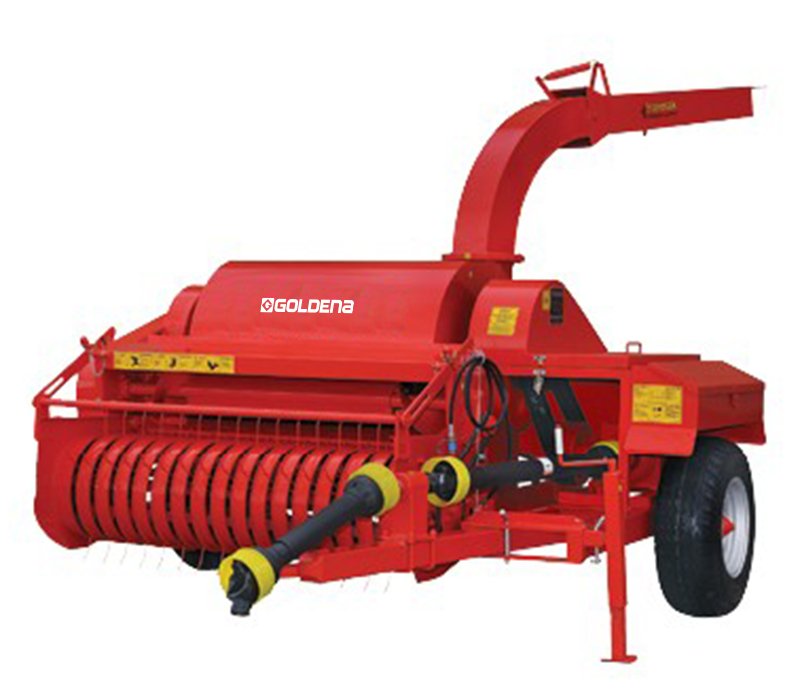

STEM COLLECTING AND STRAW MAKING MACHINE

AUTOMATIC STEM COLLECTION AND STRAW MAKING MACHINE: The task of the machine is gathering automaticly the straws of the wheat, barley, oath, rye, soyabeans, corn, clovers etc. which are left in the fields as rows or aggregation and make them fodder automatically and fill up the special straw trailor which is hooked to the back thanks to aspirator.

SUPERIOR WORKING WIDTH: 190 cm collecting width increased the gathering performance at the same time, the fodder which is left in the fields are minimized thanks to the side rake.

EXALTED BLENDING CAPABILITY: Stem chopping capability is increased with the 6 rows drum system which has 66 pieces fingers on it and 137 cm heigh concave sieve. Further, the drum fingers are produced in bolted fixing in order to provide double sides usage.

STRONG ASPIRATOR SYSTEM: 60 cm diameter of the aspirator fan with perfect vacuum and pressing volume is especially designed to prevent all issues while converting the green fodder plants as clover, vetch, sainfoin etc. to straw.

TECHNICAL SPECIFICATIONS
MODEL	GSC-165
Length (mt)	5.44
Width (mt)	3.1
Height (mt)	2.4
Working Width (cm)	165
Tire Size	10.0/75-15.3
Necessary Power	65
PTO (rpm)	540
Working Capacity kg/20min.	1000
Bator Capacity (mm)	1200
Speed Rate (km/h)	2.5
Weight (kg)	1500
